What is the primary function of the OMRON G2R-1-SN 24VDC relay?

The primary function of the OMRON G2R-1-SN 24VDC relay is to control electrical circuits. It acts as an electromechanical switch that can turn devices on and off. When a voltage of 24VDC is applied to the relay coil, it energizes and closes the circuit, allowing for current to flow through the connected load. This relay is widely used in automation systems and industrial controls, providing reliable switching capabilities in various applications.

What are the specifications of the G2R-1-SN relay?

The G2R-1-SN relay features a 24V DC coil voltage, a maximum switching capacity of 10A, and a 5-pin configuration. It operates as a Single Pole Double Throw (SPDT) relay, enabling both normally open and normally closed contacts. Additionally, it incorporates mechanical indicators and LED status indicators, providing visual confirmation of the relay's state. This compact design makes it suitable for various electronic projects, including home automation and industrial controls.

How does the LED indicator function on the G2R-1-SN relay?

The LED indicator on the G2R-1-SN relay provides a visual signal about the relay's operational status. When the relay is energized and the coil receives 24V DC, the LED lights up, indicating that the relay is closed and the circuit is active. This feature is particularly useful for troubleshooting and monitoring applications, as it allows users to quickly ascertain whether the relay is functioning correctly without needing to test with a multimeter.

What types of applications is the G2R-1-SN relay suitable for?

The G2R-1-SN relay is suitable for a wide range of applications, including industrial automation systems, HVAC control, lighting control systems, and security systems. Its ability to handle 10A of current makes it ideal for devices like motors, solenoids, and resistive loads. Additionally, its compact design allows it to be integrated into limited space environments, making it a versatile choice for both home and industrial use.

Can the G2R-1-SN relay be used for switching AC loads?

While the G2R-1-SN relay is primarily designed for DC applications, it can still be used for switching AC loads, provided that the load does not exceed its rated specifications. Users should ensure that the relay’s contacts are rated for the AC voltage and current they intend to use. Proper precautions and considerations must be taken to avoid issues such as contact burning or reduced lifespan when using it for AC applications.

Is the G2R-1-SN relay compatible with PLCs?

Yes, the G2R-1-SN relay is compatible with Programmable Logic Controllers (PLCs). Its 24VDC coil voltage aligns with common PLC output voltages, making it suitable for integration in automated systems. This compatibility allows control of large loads through the relay using low-power signals generated by the PLC, establishing a crucial link in industrial control applications and enhancing system efficiency.

What does SPDT mean in the context of the G2R-1-SN relay?

SPDT stands for Single Pole Double Throw, which indicates the configuration of the relay contacts. In the case of the G2R-1-SN relay, it features one common terminal and can connect to either of two output terminals. This setup allows users to switch between two different circuits using a single input signal, thereby providing flexibility in control applications, such as lighting systems where one switch controls multiple states.

What should I consider when wiring the G2R-1-SN relay?

When wiring the G2R-1-SN relay, you should consider the proper connection of the coil and contacts. Make sure to connect the coil terminals to a suitable 24VDC power source and ensure that load connections adhere to the relay’s current and voltage ratings. It's also essential to follow wiring diagrams to avoid incorrect connections, which could damage the relay or the circuit. Proper insulation and safety precautions should always be a priority during setup.

What precautions should I take when using the G2R-1-SN relay in my project?

When using the G2R-1-SN relay, it’s important to consider precautions such as ensuring that the relay's specification matches the requirements of your application. Avoid exceeding the voltage and current limits to prevent potential damage. Additionally, always ensure connections are secure to prevent shorts. Consider using protective devices such as fuses or circuit breakers in your circuit design to safeguard against unexpected failures, enhancing reliability in your projects.

Where can I buy the G2R-1-SN 24DC S relay in Ireland?

You can buy the G2R-1-SN 24DC S relay from Ubuy, a reputable e-commerce platform offering a wide range of electronic components. Ubuy often provides various options for sourcing such relays, ensuring competitive pricing and reliable service for your purchasing needs. Visit Ubuy for detailed product listings and availability in Ireland.

How to Shop G2R-1-SN 24DC S | G2R-1-SN 24DCS | 125340 | OMRON Online From Ubuy?

It’s easy to shop G2R-1-SN 24DC S | G2R-1-SN 24DCS | 125340 | OMRON online from Ubuy. You just have to search for the product, choose your shipping method while checking out and get it delivered to your location.

Is G2R-1-SN 24DC S | G2R-1-SN 24DCS | 125340 | OMRON Available to Shop Online in Ireland?

Yes, at Ubuy Ireland this product is available for you to shop at a reasonable price. The G2R-1-SN 24DC S | G2R-1-SN 24DCS | 125340 | OMRON is not available locally but you can trust us with our express shipping services.

How Long Does It Take to Get Product After Placing the Order?

The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.

Omron

Item #: 88606053

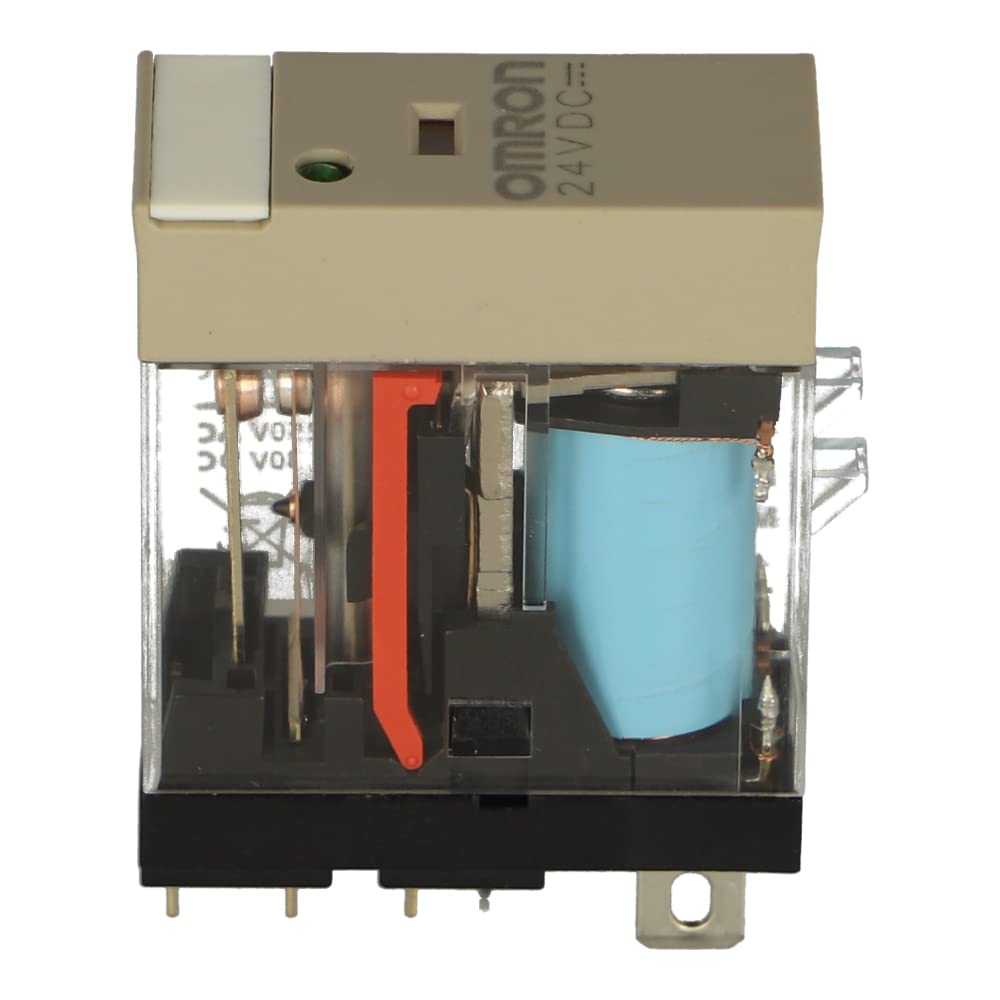

G2R-1-SN 24DC S | G2R-1-SN 24DCS | 125340 | OMRON Relay, Plug-in, 24VDC, 10A, 5 PIN, SPDT, MECH & LED Indicators, Label Facility

85% of respondents would recommend this to a friend

Item #: 88606053

€ 14

Price Details

Excluding Shipping & Custom charges ( Shipping and custom charges will be calculated on checkout )

^{*All items will import from US}

Availability : In stock

Imported from USA store

QTY:

Order now and get it around Tuesday, October 06

Secured transaction

Our Top Logistics Partners

U-Care Warranty:

None

Select a Plan

Buy Now Pay Later

Fast
Shipping

Free
Return^*

Secure Packaging

100% Original Products

PCI DSS Compliance

ISO 27001 Certified

Note: Step Down Voltage Transformer required for using electronics products of US store (110-120). Recommended power converters Buy Now.

What Stands Out

High Current Rating

This relay supports up to 10A at 24VDC, making it ideal for various applications requiring reliable switching capacity, ensuring it meets the demands of advanced electrical systems.

LED Indicators

Equipped with LED indicators for easy status monitoring, this relay allows users to quickly verify operation, enhancing troubleshooting efficiency and operational transparency in automation systems.

Label Facility

The convenient label facility allows for easy identification and customization, improving organization and usability in complex wiring setups, streamlining maintenance and installation processes for users.

Product Details

Connector Type	Plug-In
Contact Material	Silver
Contact Type	Normally Open
Current Rating	10 Amps
Mounting Type	Socket Mount
Package Dimensions	4.29 x 4.25 x 0.35 inches (10.9 x 10.8 x 0.9 cm); 0.71 ounces (20.13 grams)

Who Should Buy?

Industrial Automation
Ideal for automation systems requiring reliable control of higher current loads with visual indication.
Electrical Projects
Perfect for DIY enthusiasts and engineers working on electrical projects needing a compact relay solution.
Control Panels
Suitable for use in control panels where space and efficiency are paramount, offering easy installation and maintenance.

Low Power Applications
Not suitable for low current circuits that do not require a robust 10A relay function.

Product Description

G2R-1-SN 24DC S | G2R-1-SN 24DCS | 125340 | OMRON Relay, Plug-in, 24VDC, 10A, 5 PIN, SPDT, MECH & LED Indicators, Label Facility
