What are the specifications of the STEPPERONLINE Nema 14 Stepper Motor?

The STEPPERONLINE Nema 14 Stepper Motor features a 1.8-degree step angle, operates on 12V, and draws a current of 0.4A. With a holding torque of 14Ncm (or 20oz.in) and dimensions measuring 35x35x26mm, this motor is designed for precise positioning in various applications. These specifications make it suitable for 3D printers, CNC machines, and robotic projects, where accurate motion control is crucial.

What type of projects is the Nema 14 Stepper Motor typically used for?

The Nema 14 Stepper Motor is widely used in projects requiring high precision and control, such as 3D printers, CNC routers, laser cutters, and robotics. Its ability to maintain position without needing feedback makes it ideal for applications where accurate movement is essential, ensuring you can build sophisticated systems that require reliable performance over time.

How does the step angle of the Nema 14 affect its performance?

The 1.8-degree step angle of the Nema 14 motor translates to 200 steps per revolution, allowing for precise movement and control. This high resolution is beneficial in applications needing intricate positional accuracy, such as in automated machinery or precise robotic arms, where small adjustments are necessary for optimal operation.

How do I wire the STEPPERONLINE Nema 14 Motor?

The Nema 14 Stepper Motor has four wires, corresponding to two bipolar phases. You can connect these to a suitable stepper motor driver by pairing the wires correctly for each phase. Following proper wiring guidelines ensures effective control of the motor's rotation direction and speed, which is vital for applications like setting up a CNC machine or a 3D printer to function reliably.

What voltage and current ratings should I use with this motor?

The STEPPERONLINE Nema 14 Stepper Motor is rated for 12V and 0.4A. To achieve optimal performance, it’s critical to utilize a compatible power supply that meets these specifications. Using incorrect voltage or current could lead to insufficient torque or even overheating, which could potentially damage the motor and jeopardize your projects.

Can I use this motor with Arduino and similar controllers?

Yes, the STEPPERONLINE Nema 14 Motor is compatible with Arduino and other microcontroller platforms. By utilizing a compatible motor driver, you can easily integrate this motor into your projects, allowing for control via programming. This versatility makes it ideal for DIY robotics, home automation systems, or educational projects focused on robotics.

What is the holding torque of the Nema 14 Stepper Motor?

The holding torque of the Nema 14 Stepper Motor is 14Ncm or 20oz.in. This torque rating indicates the maximum amount of torque the motor can exert when it is stationary. It's crucial for applications that demand stability when powered, making it a reliable choice for scenarios where the position needs to be maintained against external forces, such as in robotic arms or camera sliders.

What makes bipolar stepper motors like Nema 14 preferable?

Bipolar stepper motors, such as the Nema 14, are preferred due to their high torque and efficiency compared to unipolar motors. The configuration allows for a more compact design with better performance, especially in terms of step resolution and holding torque. This makes bipolar motors ideal for applications like precision machinery and high-performance robotics, where reliability is a must.

How loud is the STEPPERONLINE Nema 14 Motor during operation?

While stepper motors, including the STEPPERONLINE Nema 14, can produce some noise during operation, it is generally considered quiet. Depending on the driver and stepping mode used, operation can vary from nearly silent to a slight hum. This characteristic makes it suitable for applications where low noise is a priority, such as in home automation or quiet laboratory environments.

Where can I buy the STEPPERONLINE Nema 14 Motor?

You can purchase the STEPPERONLINE Nema 14 Motor from Ubuy, which provides a convenient platform for buying electronics and components. Ubuy offers international shopping options, making it easier to obtain this stepper motor regardless of your location, ensuring you can start your projects without delay.

How to Shop STEPPERONLINE Nema 14 Motor Step Motor 1.8deg Online From Ubuy?

It’s easy to shop STEPPERONLINE Nema 14 Motor Step Motor 1.8deg online from Ubuy. You just have to search for the product, choose your shipping method while checking out and get it delivered to your location.

Is STEPPERONLINE Nema 14 Motor Step Motor 1.8deg Available to Shop Online in Ireland?

Yes, at Ubuy Ireland this product is available for you to shop at a reasonable price. The STEPPERONLINE Nema 14 Motor Step Motor 1.8deg is not available locally but you can trust us with our express shipping services.

How Long Does It Take to Get Product After Placing the Order?

The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.

STEPPERONLINE

Hybrid bipolar stepper motor with high holding torque of 14Ncm(20oz.in)

STEPPERONLINE

Item #: 764270

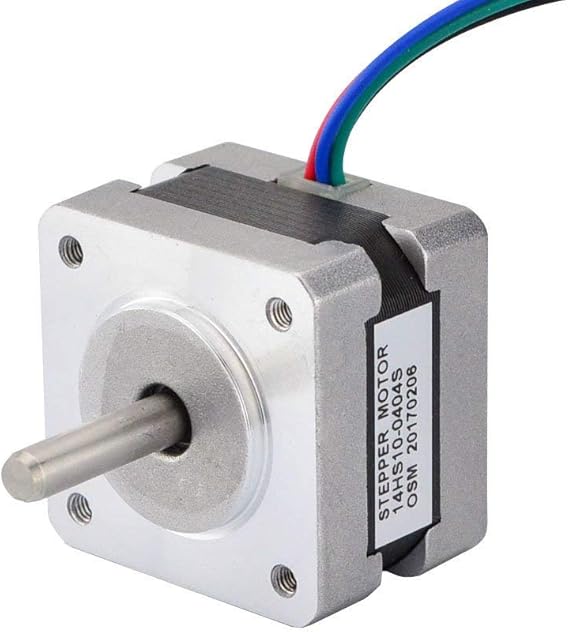

STEPPERONLINE Nema 14 Motor Step Motor 1.8deg Bipolar 12V 0.4A 14Ncm/20oz.in 35x35x26mm 4-wire

87% of respondents would recommend this to a friend

Item #: 764270

€ 26

Price Details

Excluding Shipping & Custom charges ( Shipping and custom charges will be calculated on checkout )

^{*All items will import from US}

Availability : In stock

Imported from USA store

QTY:

Order now and get it around Thursday, September 24

Secured transaction

Our Top Logistics Partners

Hybrid bipolar stepper motor with high holding torque of 14Ncm(20oz.in)

U-Care Warranty:

None

Select a Plan

Buy Now Pay Later

Fast
Shipping

Free
Return^*

Secure Packaging

100% Original Products

PCI DSS Compliance

ISO 27001 Certified

Note: Step Down Voltage Transformer required for using electronics products of US store (110-120). Recommended power converters Buy Now.

What Stands Out

High Precision

The Nema 14 motor offers precise 1.8-degree step resolution, making it ideal for applications requiring exact movements, such as 3D printers and CNC machines.

Compact Design

With dimensions of just 35x35x26mm, this stepper motor fits easily into tight spaces, allowing for versatile integration into various projects without sacrificing performance.

Reliable Torque

Generating a holding torque of 14Ncm/20oz.in at only 0.4A, this motor provides reliable performance while being energy-efficient, reducing overall power consumption in your systems.

Product Details

Hybrid bipolar Nema 14 stepper motor
1.8 deg. step angle (200 steps/revolution)
0.4A rated current at 12V
14Ncm(20oz.in) holding torque
Physical specifications: 35 x 35mm (frame size), 26mm (body length), 5mm (shaft diameter), 4 leads, 140g (weight)
Connection: Black(A+), Green(A-), Red(B+), Blue(B-)

Brand Name	STEPPERONLINE
Model Name	NEMA 14
Model	14HS10-0404S
Manufacturer	OSM Technology Co.,Ltd.
UPC	701056365364
Unit Count	1 Count
Part Number	14HS10-0404S
Speed	30 rpm
Voltage	12 volts
Horsepower	0.4 hp
Item Dimensions W x H	1.38"W x 1.38"H (3.5 cm)
Material Type	Metal
Brand	STEPPERONLINE

Who Should Buy?

3D Printing
Ideal for users seeking precise control and performance in 3D printing applications with compact builds.
Robotics Projects
Perfect for hobbyists and engineers working on small robotics projects requiring accurate and repeatable movements.
DIY Automation
Great for enthusiasts looking to automate small tasks at home or in laboratories with reliable stepper motor technology.

Heavy Machinery
Not suitable for users needing high torque for heavy lifting applications, as it offers only 14Ncm torque.

Product Description

STEPPERONLINE Nema 14 Motor Step Motor 1.8deg Bipolar 12V 0.4A 14Ncm/20oz.in 35x35x26mm 4-wire

Have any Query? Chat with us

Customer Questions & Answers

Question: How to Shop STEPPERONLINE Nema 14 Motor Step Motor 1.8deg Online From Ubuy?

Answer: It’s easy to shop STEPPERONLINE Nema 14 Motor Step Motor 1.8deg online from Ubuy. You just have to search for the product, choose your shipping method while checking out and get it delivered to your location.
Question: Is STEPPERONLINE Nema 14 Motor Step Motor 1.8deg Available to Shop Online in Ireland?

Answer: Yes, at Ubuy Ireland this product is available for you to shop at a reasonable price. The STEPPERONLINE Nema 14 Motor Step Motor 1.8deg is not available locally but you can trust us with our express shipping services.
Question: How Long Does It Take to Get Product After Placing the Order?

Answer: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.

STEPPERONLINE 3D Printer Motors Editorial Review

This Nema 14 stepper motor has received positive reviews from customers who have used it in their 3D printers. Customers have reported that it moves on command and works perfectly with geared extruders. Some customers have noted that the motor runs slightly hot, but it can be easily cooled with a fan. The product has been praised for its fine quality and well-packaged delivery. Overall, customers have had a good experience with the STEPPERONLINE Nema 14 motor.

Customer Reviews & Ratings

4.0

1 customers ratings

5 Star

0%
4 Star

100%
3 Star

0%
2 Star

0%
1 Star

0%

Review this product

Share your thoughts with other customers

Pros

Moves on command
Works great with geared extruders
Runs cool during printing
Fine quality product
Well-packaged delivery

Cons

Motor may run slightly hot

Product Price History

Important information

Limitations : For products shipped internationally, please note that any manufacturer warranty may not be valid; manufacturer service options may not be available; product manuals, instructions, and safety warnings may not be in destination country languages; the products (and accompanying materials) may not be designed in accordance with destination country standards, specifications, and labeling requirements; and the products may not conform to destination country voltage and other electrical standards (requiring use of an adapter or converter if appropriate). The recipient is responsible for assuring that the product can be lawfully imported to the destination country. When ordering from Ubuy or its affiliates, the recipient is the importer of record and must comply with all laws and regulations of the destination country.
Not all the products listed on Ubuy are for sale, as Ubuy is a global search engine. Products are subject to export/trade regulations.

€ 26

Order now and get it around Thursday, September 24

QTY:

Secured transaction

PCI DSS compliant and ISO 27001:2022 certified, with encrypted payments and full buyer protection on every order.

Our Top Logistics Partners

Fastest cross-border delivery

Features & Benefits

Step angle: 1.8 deg with 200 steps/revolution
Rated current/phase: 0.4A
Physical specification: Frame size-35x35mm, Weight-140 g, Shaft Length-20.5mm
Electrical specification: Phase resistance-30 ohms, Inductance-30mH, etc.
Connection: Black(A+), Green(A-), Red(B+), Blue(B-)
